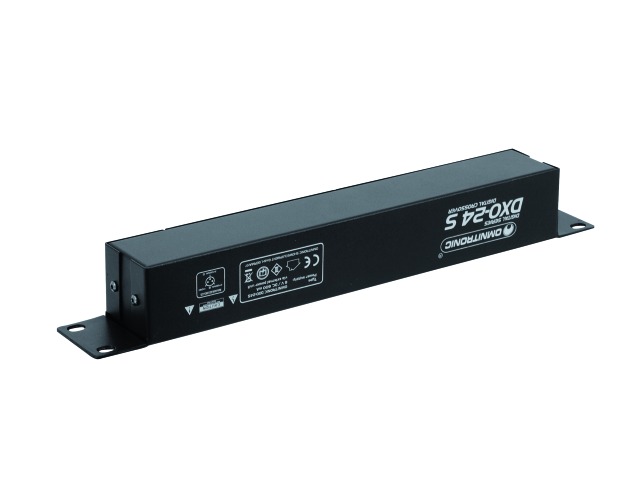

Omnitronic DXO-24S, digitální výhybka

Flexible routing configurations for all standard mono and stereo output operating modes. Small installation version w/o control elements - control via supplied PC software through USB interface: store, transfer and manage your presets. Up to 30 user presets storable in the device via PC software. 2 analog inputs and 4 analog outputs (XLR). Active frequency filter types (Bessel, Butterworth and Linkwitz-Riley) with slopes up to 24 dB/octave split up the audio signal into different frequency bands. Mute switch with LED indicator per output. 7-band parametric EQ per output. Up to 7 ms signal delay adjustable for the outputs. Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system. Switchable phase. Lock function for protecting the program settings. Screw terminals for external control unit. Wall mounting

Technické parametry

Power supply	230 V AC, 50 Hz ~

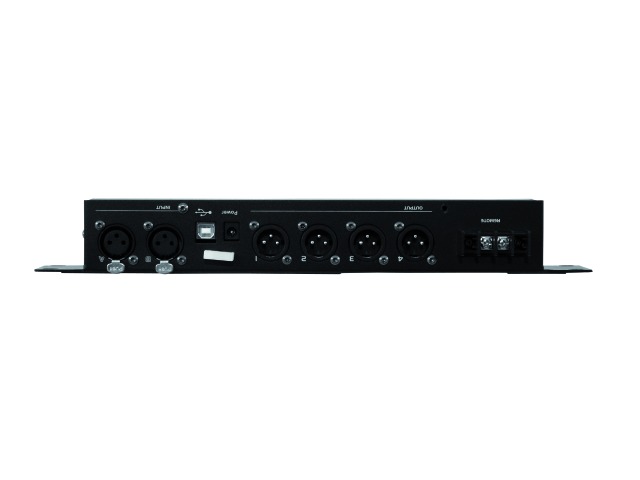

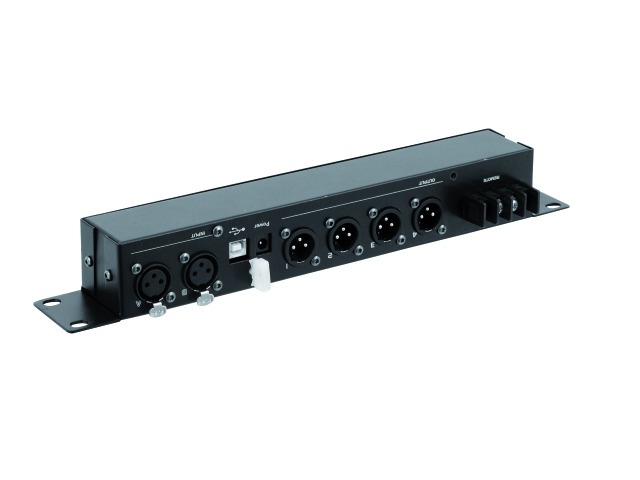

Inputs	2 x XLR, balanced
Maximum output level	+22 dBu
Input impedance	10 kohms
Outputs	4 x XLR, balanced
Output impedance	50 ohms (electronically balanced)
Output gain range	-50 to +12 dB
Maximum output level	+9 dBu
Sampling frequency	65 kHz
Dynamic range D/A converter	114 dBA
Dynamic range A/D converter	110 dBA
Frequency response	20 Hz to 30 kHz
Distortion	0,005 %
USB port	type B
External control	12 V via screw terminals
Filter types	Bessel, Butterworth or Linkwitz-Riley
Slopes	6, 12, 18 or 24 dB/octave
Crossover frequency	20-20000 Hz
Delay	0~7 msec
Dimensions (WxHxD)	337 x 44 x 64 mm
Weight	500 g
Velikost balení	8.5 x 36 x 6.5 cm
Hmotnost balení	0.9 kg
