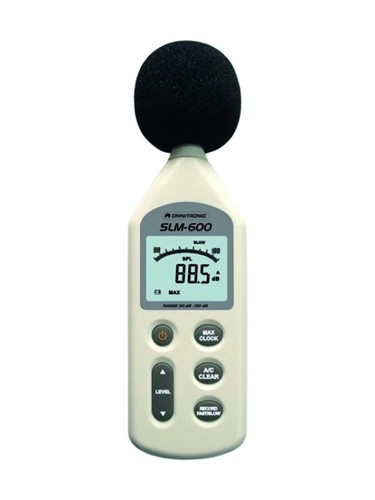

Omnitronic SLM-600 SPL, měřič hlasitosti
ukončené zboží - nelze objednat
skladem
Digital sound level meter with backlit LCD. Software kit for data recording and analysis on PCs and laptops. Supports Windows XP, vista and 7 (32 bit). Data transfer via USB port. Electret condenser microphone cartridge. Measuring range from 30-130 dB. Max Hold function. A and C weighting . Slow and fast measuring mode. Additional analog outputs for AC and DC current via 3.5 mm jacks (1/8"). Operation via 4 x 1.5 V mignon battery (type AA) or USB bus. Incl. windscreen, batteries, USB cable, software (CD-ROM).
Technické parametry
Technické parametry
| Power supply | 4 x 1.5 V battery, type AAor 5 V DC, 100 mA via |
| USB port Measuring ranges | 30-80 dB, 40-90 dB, 50-100 dB, 60-110 dB, 70-120 dB, 80-130 dB, 30-130 dB |
| Accuracy | Â1.5 dB/94 dB, 1kHz |
| Frequency range | 31.5 Hz - 8.5 kHz |
| Level weighting | A or C |
| Microphone | electret condenser microphoneAC output: 0.707 V RMS Output |
| Impedance | 600 ohms |
| DC output | 10 mVOutput |
| Impedance | 100 ohms |
| Supported operating systems | Windows XP, Vista, 7 (32 bit) |
| Dimensions (LxWxH) | 145 x 110 x 60 mm |
| Weight | 0.6 kg |
| Velikost balení | 25 x 28.5 x 7 cm |
| Hmotnost balení | 0.9 kg |
