Úvod »ukončené produkty» Citronic RU26-H, UHF bezdrátový mikrofon, 2 kanálový, ruční
Citronic RU26-H, UHF bezdrátový mikrofon, 2 kanálový, ruční
ukončené zboží - nelze objednat
skladem

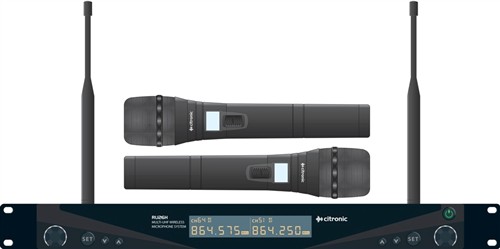

Dual channel PLL tuned UHF wireless system with rack-mountable receiver and premium quality microphone transmitters. Carrier frequency is selected on the receiver and synchronised to the transmitter via infra-red at the touch of a button. Up to 2 systems can be used together on 4 separate UHF frequencies. Designed for professional vocal and sound reinforcement applications. Includes rear or front mounting antennae. 81 UHF frequencies - PLL tuned. Individual or mixed outputs. Large backlit LCD display. 19" Rack-mountable (1U).
Technické parametry
Technické parametry
| Power supply | 14Vdc 500mA adapter (supplied) |
| Carrier frequency | 863 - 865MHz (selectable) |
| S/N ratio | >105dB |
| THD | <0.5% |
| 1KHz | |
| Image rejection | 85dB typical |
| Range | 60m (max) |
| Output impedance | 2.2KÎ |
| Output level | Balanced: 0-400mv, unbalanced: 0-200mv |
| Connectors | DC in, 2 x XLRM, 6.3mm jack |
| Dimensions - receiver | 483 x 44 x 225mm |
| Weight - receiver | 2.15kg |
| Dimensions - handheld transmitter | 255 x 50mmĂ |
| Weight - handheld transmitter | 345g (no battery) |
| Dimensions - beltpack transmitter | N/A |
| Weight - beltpack transmitter | N/A |
| Hmotnost balení | 4 kg |
