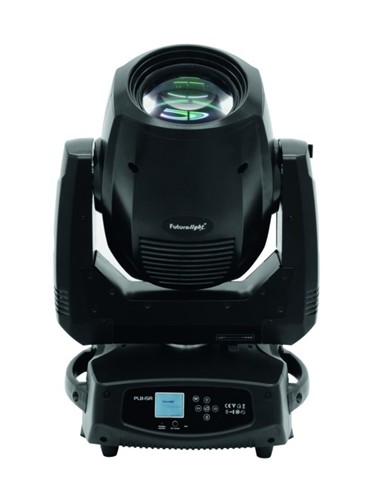

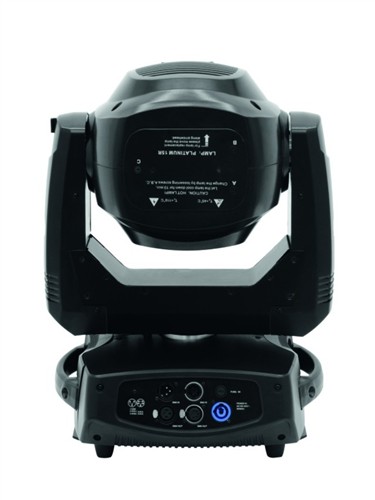

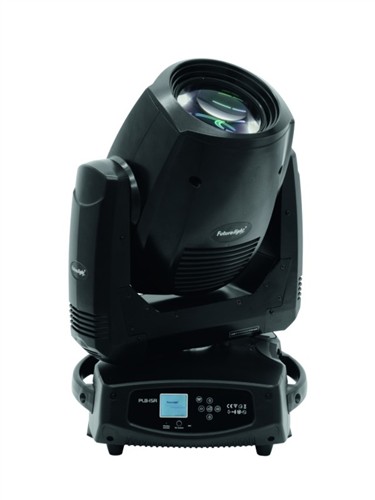

Futurelight PLB-15R vč. světelného zdroje

Double lamp lifetime with half power input and smaller dimensions compared to a 700 W lamp. With integrated wireless receiver for WDMX operation. Supports RDM (Remote Device Management). Very narrow illumination angle. Light beam is centered and moved exactly. Color-wheel with 6 different, dichroic color filters and white and additionally with CTO correction filter and UV filter. Switchable color change (mode 1: only full colors, mode 2: color-change at every position). 14, 16 or 22 DMX channels selectable. Rainbow effect with adjustable speed in both directions. Gobo-wheel with 13 static metal gobos plus open. Gobo-wheel with 8 rotating gobos plus open. Slot-in gobo-system for exchanging gobos without tools. With gobo-shake function. Rotating 3-facet prism. Macro-function for rotating gobos/rotating prism combinations. Motorized focus. Strobe effect with 1-13 flashes per second. Random strobe effect. Frost-filter. Mechanic dimmer. Exact positioning via 16 bit resolution: color-wheel, gobo indexing, prism indexing, focus, dimmer and PAN/TILT movement. Automatic position correction. Switch-mode power supply. Automatic power supply adaption between 100 and 240 Volts without power selector. ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc.. Control board with graphic LCD display and touch keyboard for adjusting the DMX-starting address, PAN/TILT reverse, program, reset, lamp on/off, operating hours. PAN-angle switchable between 630Â and 540Â. DMX-controlled operation or stand-alone operation with master/slave function. 7 built-in programs can be called up via DMX-controller. 56 preprogrammed scenes in Program Run for stand alone operation. Number of scenes in Program Run can be changed individually. The scenes in Program Run can be modified via the Control Board or via an external controller and loaded into the memory . Software upload by optional accessory via DMX link. Sound-controlled via built-in microphone. With PHILIPS MSD Platinum 15R discharge lamp. The integral mounting plate on the bottom of the device enables a permanent installation even without omega clamps, e.g. on the ceiling. Power connection via Neutrik PowerCon jack and included power cable. DMX-control via every standard DMX-controller.

Technické parametry

Power supply	100-240 V AC, 50/60 Hz ~
Power consumption	490 W/500 VA
DMX control channels	14/16/22DMX512/RDM
Connection	5-pin and 3-pin XLR
Flash-rate	13 Hz
Color-wheel	6 dichroic plus white, CTO correction filter, UV filter
Static gobo wheel	13 gobos and open
Rotating gobo wheel	8 gobos and open
Outside diameter of the gobos	14 mm
Image diameter of the gobos	6 mm
Maximum PAN-movement 630	in 1.5 s
Maximum TILT-movement 270	in 1.0 s
Beam angle	5
Length of base (including handles)	385 mm
Width of yoke	329 mm
Height (head horizontal)	486 mm
Weight	21,5 kg
Velikost balení	47 x 65.5 x 44.5 cm
Hmotnost balení	26.6 kg
