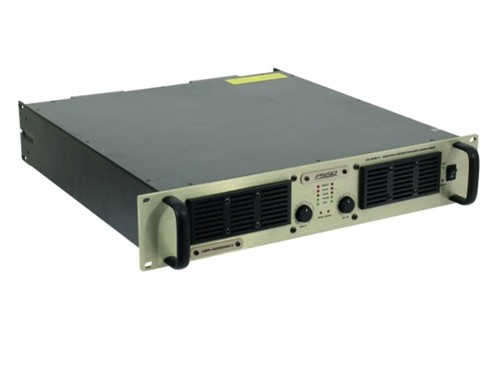

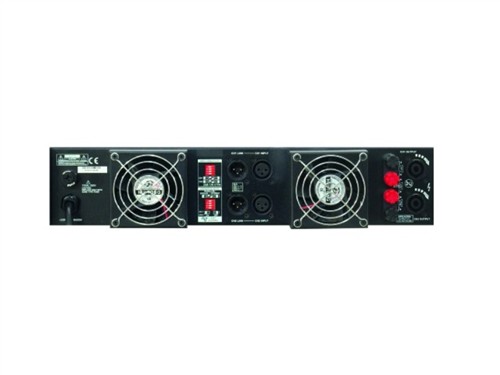

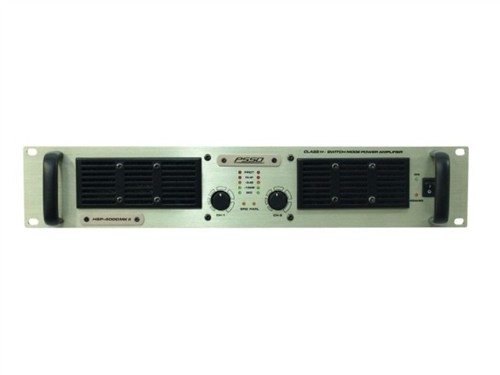

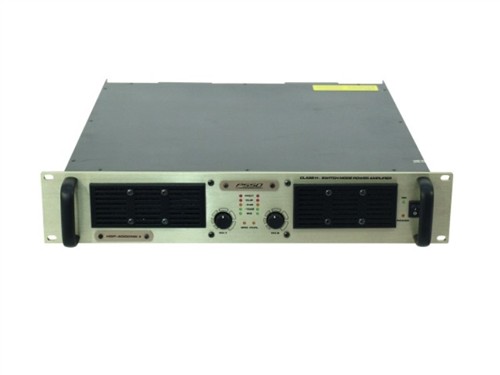

PSSO HSP-4000 MKII SMPS zesilovač, 2x 2000 W

Stereo PA amplifier with integrated SMPS, 2 x 2000 WStereo PA amplifier with class H circuitry Low weight and height due to integrated switch mode power supply Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, international concerts) Limiter and speaker switch-on delay 3 operating modes can be selected (stereo, parallel or bridged) 2 calibrated level controls for precise level adjustment Input sensitivity and limiter adjustable LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel LEDs for parallel and bridge mode Complete protection set against short-circuit, overheat, clipping, overload, DC voltage and VHF signals Highly efficient front-to-rear air routing Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs Speaker outputs via lockable Speaker plugs and screw terminals Rugged steel chassis with aluminum front panel Rack installation with 2 units Housing design: (19'') 48.3 cm rack installation 2 U

Technické parametry

Power supply	230 V AC, 50 Hz
Power consumption	2000,00 W 1/8 power
Power/channel (4 Ohm)	2000 W
Power/channel (8 Ohm)	1200 W
Frequency range	20 - 20000 Hz
Power connection	Fixed Power supply cord with safety plug
Number of channels	2
Housing design	(19'') 48.3 cm rack installation 2 U
Width	48,3 cm
Height	8,9 cm
Depth	50,5 cm
Weight	13,40 kg
Power output (RMS)
8 ohms bridged1 x 4100 W
Signal-to-Noise ratio	>,80 dB
Total harmonic distortion
Damping factor	>,200
Voltage gain	32 dB
Slew rate	>,20 V/sec
Crosstalk	>,70 dB
Input sensitivity	32 dB/1.0 V/0.775 V, switchable
Input impedance	20 kohms (balanced), 10 kohms (unbalanced)
Input connectors	2 x XLR
Output connectors	2 x Speaker, screw terminals, 2 x XLR feed-through output
Protection	Overheat, overload, short-circuit, over-current, DC voltage, softstart, VHF signals
Cooling	2 temperature-controlled fans, front-to-rear
Controls	Power switch, input attenuators, mode switch stereo/parallel/bridged, input sensitivity
LED indicators	parallel, bridge (globally), protect, clip, signal (per channel)
Construction	Steel chassis, aluminum front panel
Rack installation with 2 U
Velikost balení	57.5 x 61 x 18 cm
Hmotnost balení	15.3 kg
