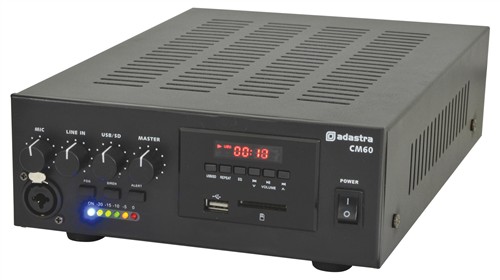

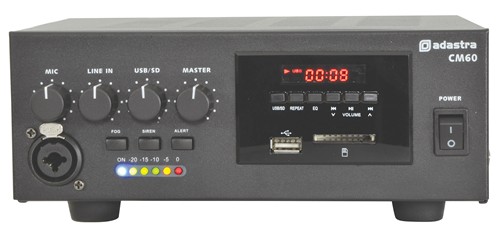

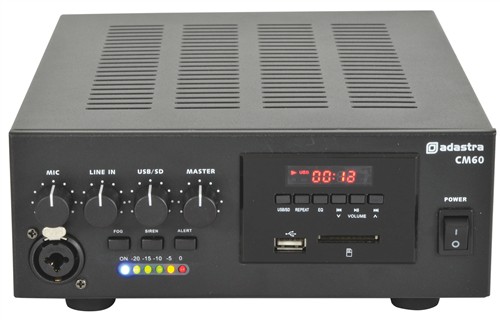

Adastra CM-60, 100V zesilovač. 60W
ukončené zboží - nelze objednat
skladem
100V line amplifiers with an integral mixer and digital audio player in a half width 2U housing. Inputs for microphone, line input and USB/SD player are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 ohms speaker load is connected via screw terminals on the rear panel. Designed as a convenient solution for small to medium PA installations. Microphone & line inputs. Integral USB and SD card player. 100V line or 8 ohms operation.
Technické parametry
Technické parametry
| Power supply | 110/230Vac, 50/60Hz (IEC) |
| DC power | 12Vdc option (screw terminals) |
| Output | Signal: 2 x RCA |

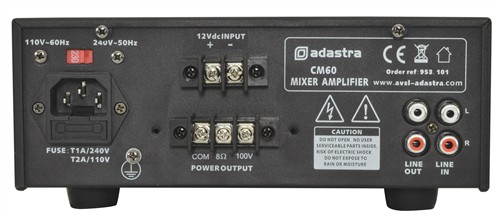

| Outputs | Speaker: 100V / 8 ohms / COM terminals |
| Inputs | Microphone (XLR & 6.3mm jack) & line (RCA) |
| Controls | Mic, line, USB/SD, master volume |
| Audio source | Integral USB/SD digital audio player |
| THD | <1.0% |
| Dimensions | 329 x 210 x 84mm |
| Frequency response | Line: 91Hz - 48kHz |
| Frequency response | Mic: 93Hz - 15.0kHz |
| Mic inputs | XLR/6.3mm Jack Combo |
| Input impedance | Mic: 1.8k ohms |
| Input sensitivity | Line: -8.8dB |
| Input sensitivity | Mic: -50.1dB |
| Output power | 60Wrms |
| Signal to noise ratio | Line: 90dB |
| Signal to noise ratio | Mic: 82dB |
| Max. attenuation | Line: 90dB |
| Max. attenuation | Mic: 88.0dB |
| Weight | 4,82 kg |
| Hmotnost balení | 3.9 kg |
