Omnitronic EDP-3600 zesilovač class D, 2x 1800W, 1HE
ukončené zboží - nelze objednat
skladem

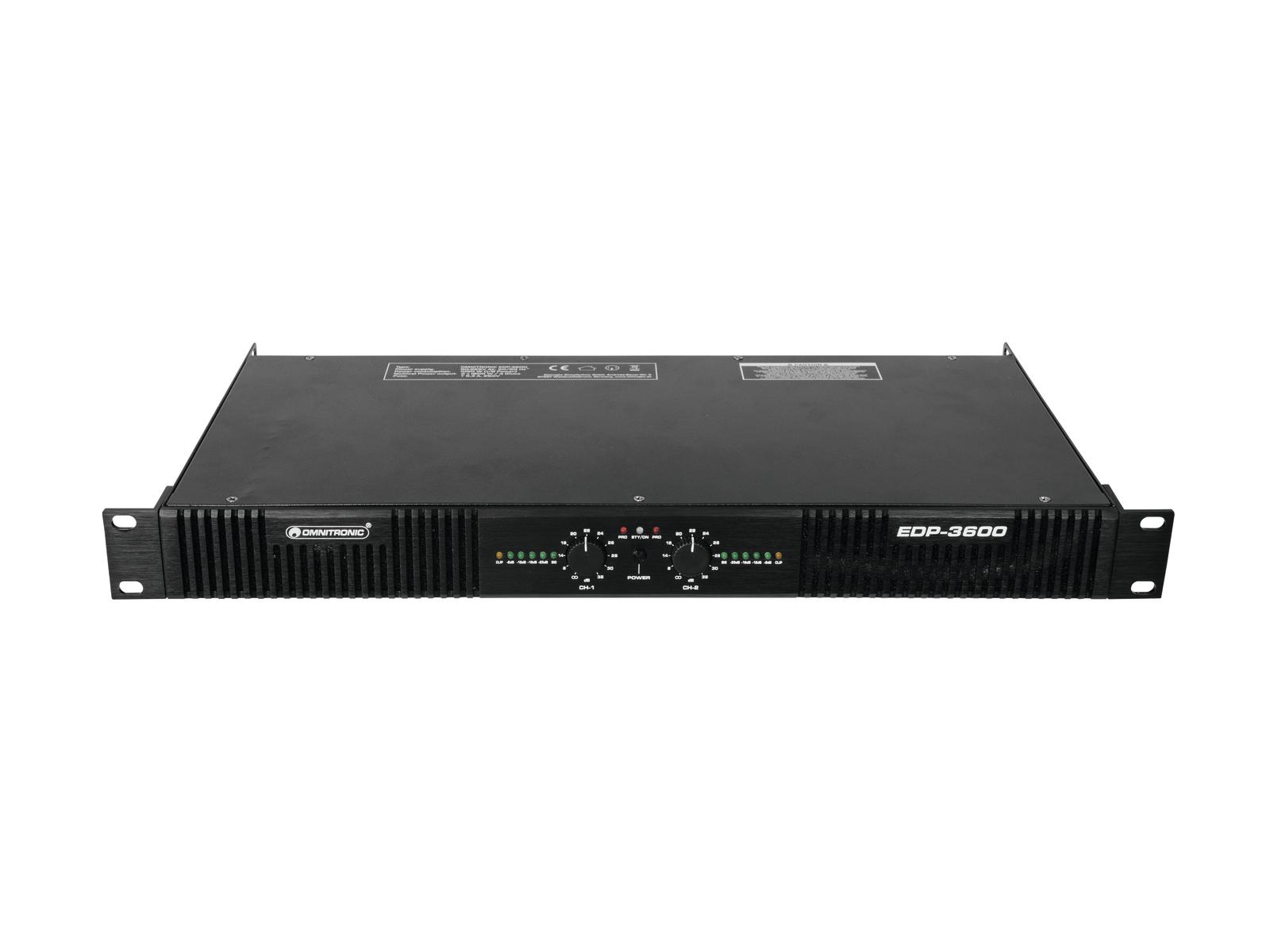

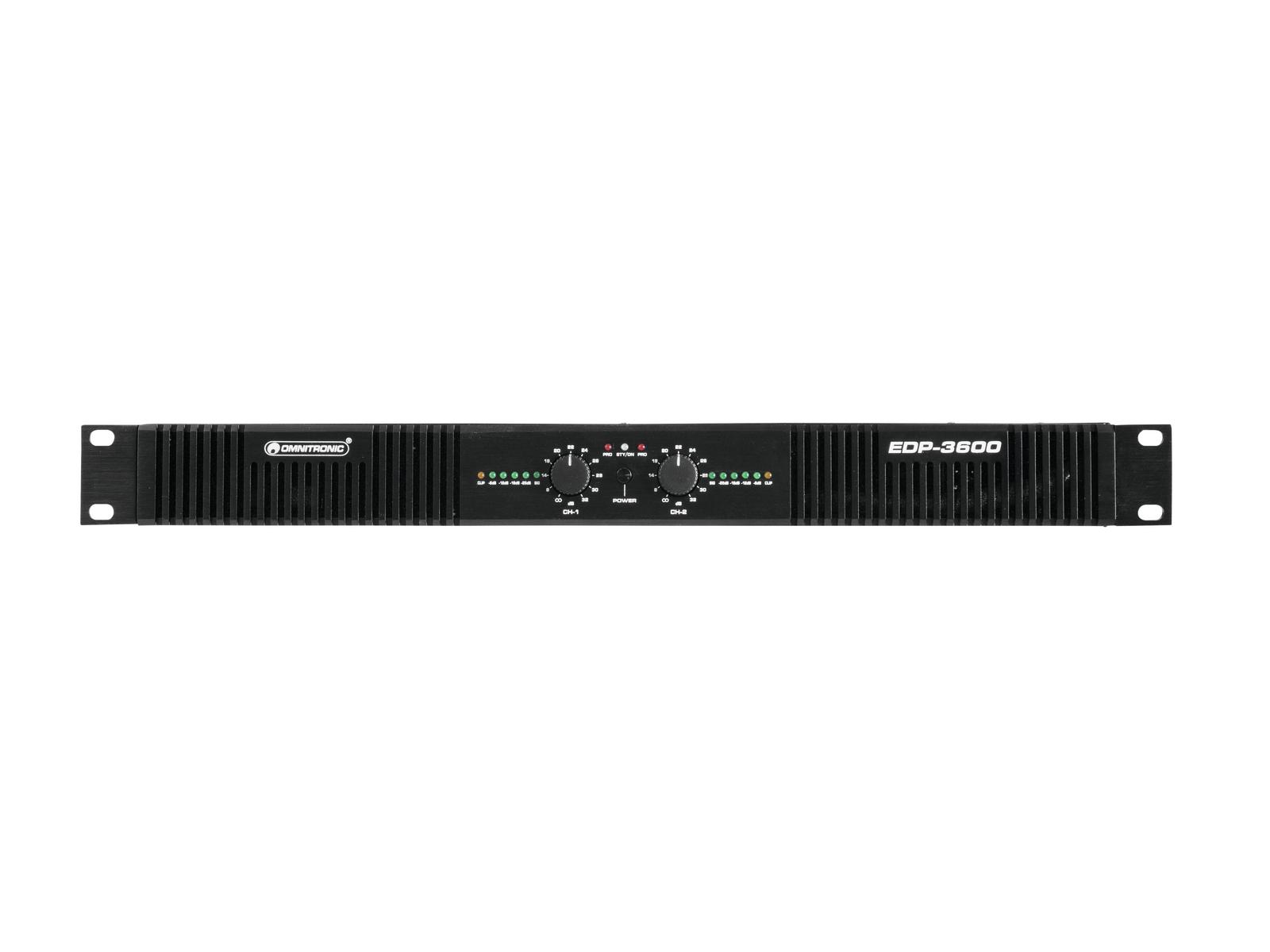

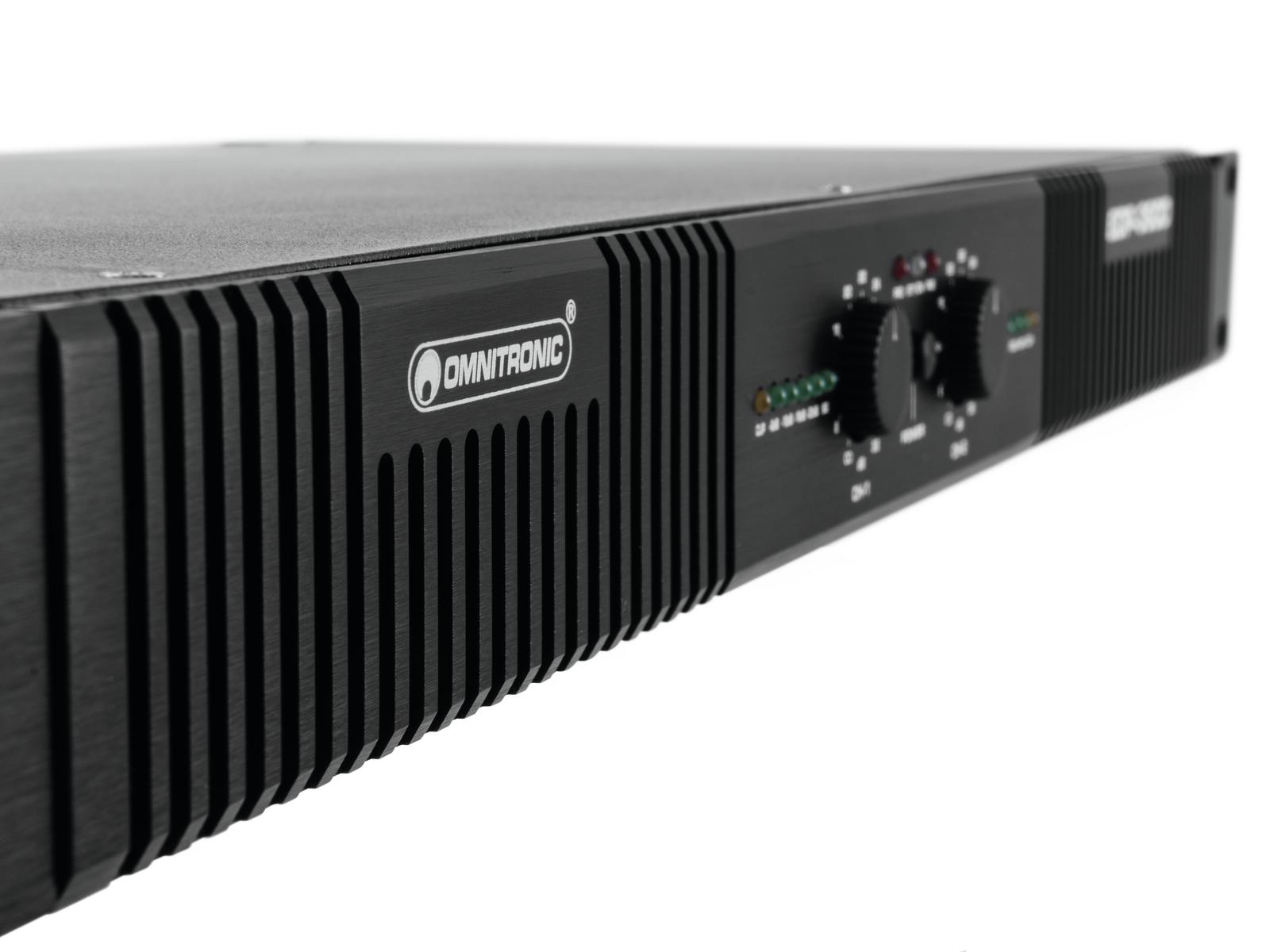

Stereo PA amplifier with class D circuitry. Low weight and height due to integrated switch mode power supply. Speaker switch-on delay and auto limiters. 2 operating modes can be selected (stereo or bridged). 2 level controls. LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel. Complete protection set against short-circuit, overheat, clipping, overload and VHF signals. Electronically balanced inputs via XLR mounting jacks. Speaker outputs via lockable Speaker plugs. Robust steel chassis with aluminum front panel. Rack installation with 1 unit.
Technické parametry
Technické parametry
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 1050 W (1/8 power) Power output (RMS): stereo 4 ohms 2 x 1700 W |
| stereo 8 ohms 2 x 1000 W | |
| 8 ohms bridged 1 x 3600 W | |
| Frequency range | 20-20000 Hz, 0.5 dB |
| Damping factor | >250 |
| Distortion factor | <0.1 % |
| Slew rate | 20 V/sec |
| S/N ratio | >95 dB |
| Input impedance | 20 kohms (balanced), 10 kohms (unbalanced) |
| Input connectors | 2 x XLR |

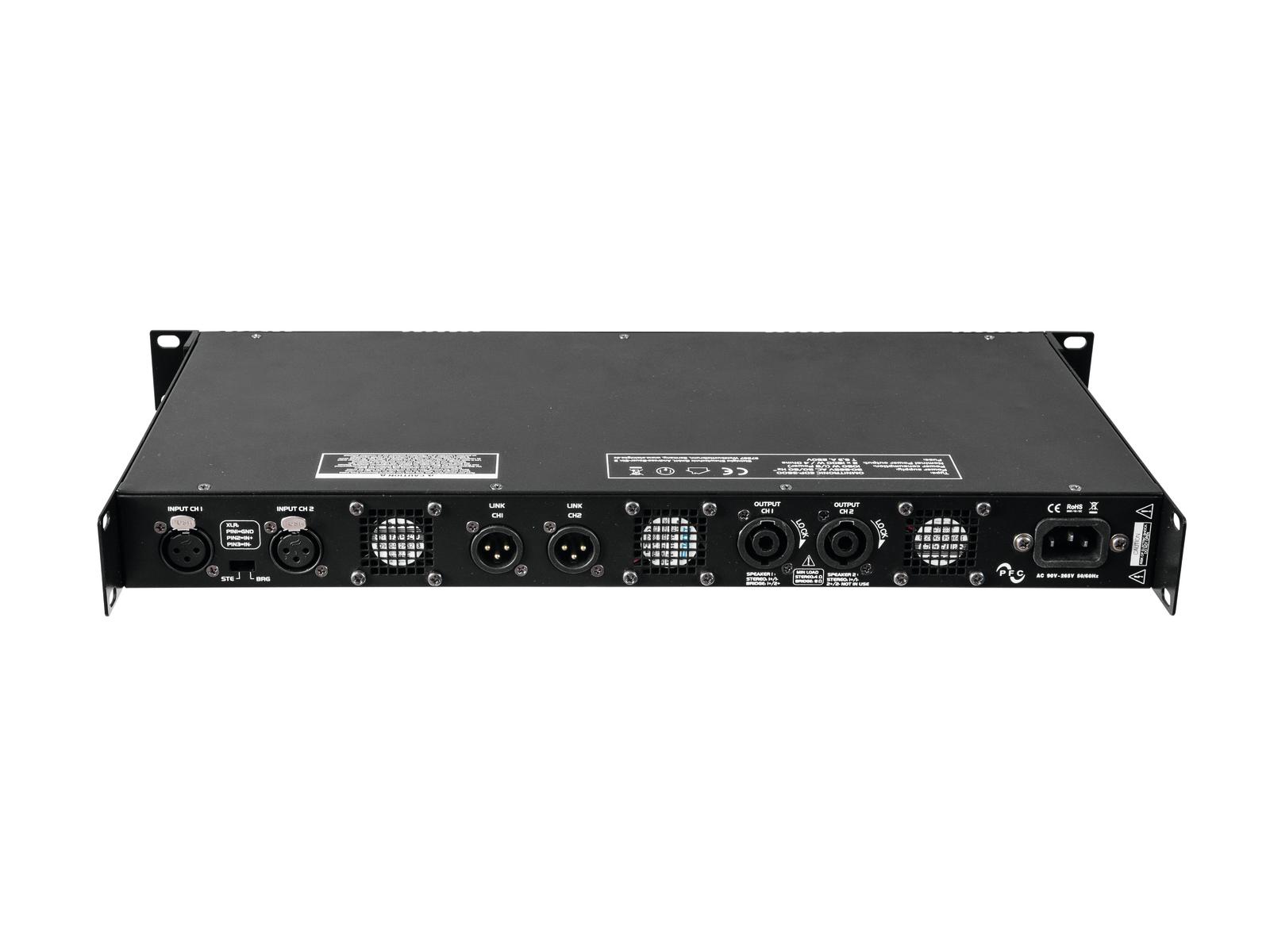

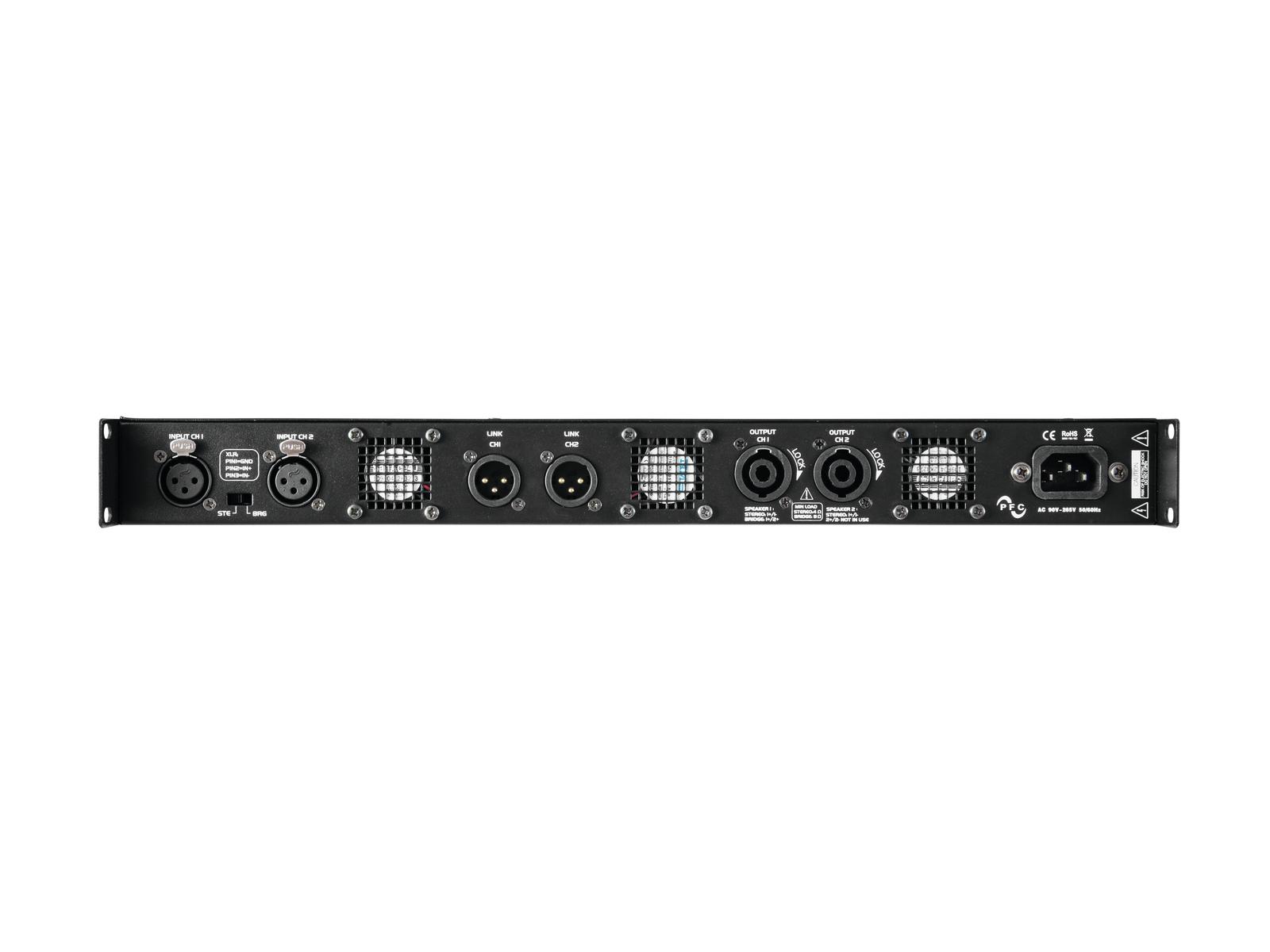

| Output connectors | 2 x Speaker, 2 x XLR feed-through output |
| Circuitry | class D + PFC |
| Control elements | power switch, level control per channel, mode switch (stereo/bridged) |
| LED indicators | protect, clip, signal, -6 dB, -12 dB, -18 dB, -25 dB (per channel) |
| Protection circuits | softstart, short-circuit, overheat, clipping, overload and VHF signals |
| Construction | steel chassis, aluminum front |
| Dimensions (DxWxH) | 200 x 483 x 44 mm (19", 1 U) |
| Weight | 4.6 kg |
| Velikost balení | 27 x 54.5 x 8 cm |
| Hmotnost balení | 4.8 kg |
