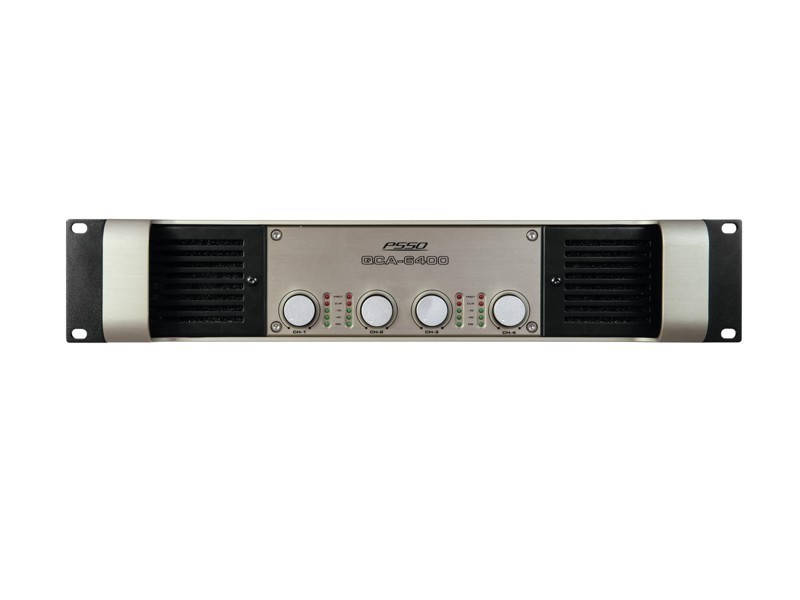

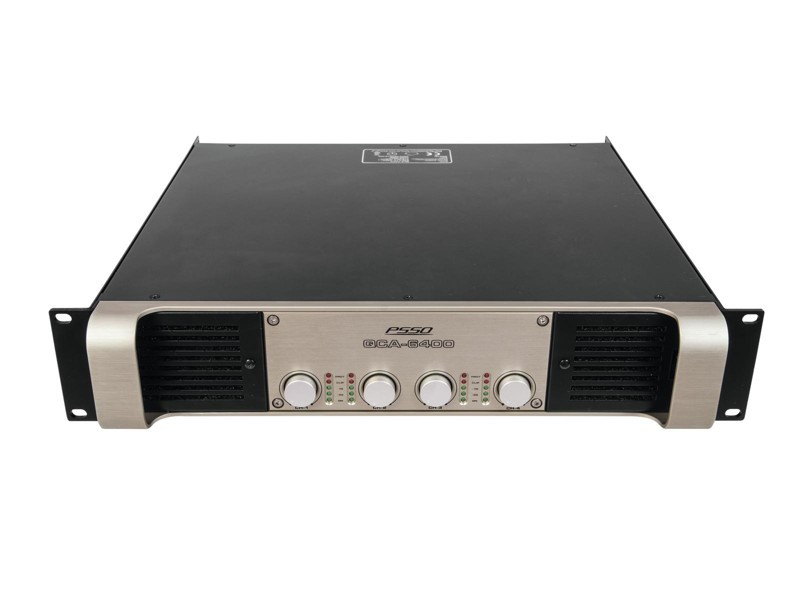

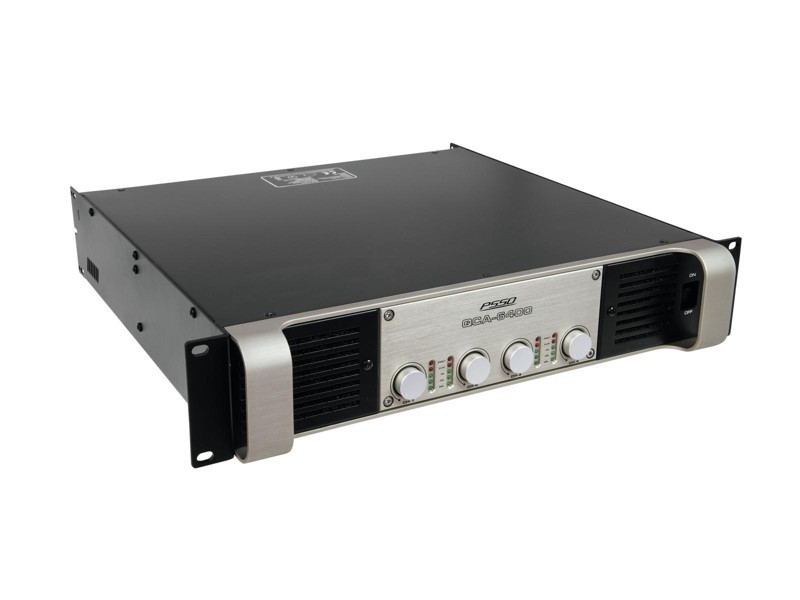

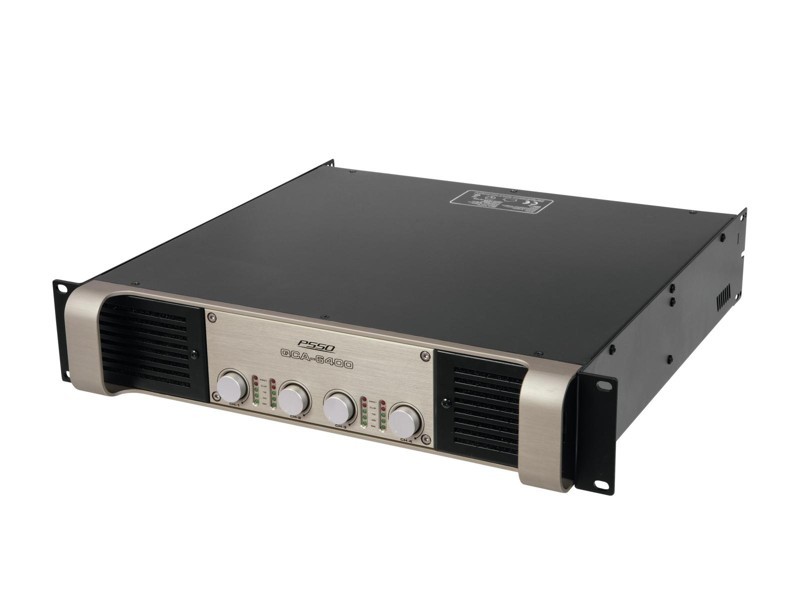

PSSO QCA-6400 4-kanálový SMPS zesilovač, 4x 2100 W

4-channel PA amplifier with class I circuitry . 4 x 1400 W/4 ohms. Low weight and height due to integrated switch mode power supply. Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, international concerts). Speaker switch-on delay. 3 operating modes can be selected (stereo, parallel or bridged). 4 level controls for precise level adjustment. Input sensitivity adjustable. LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel. Complete protection set against short-circuit, overheat, clipping, overload, DC voltage and VHF signals. Highly efficient front-to-rear air routing. Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs. Speaker outputs via lockable Speaker plugs. Rugged steel chassis with aluminum front panel. Rack installation with 2 units.

Technické parametry

Power supply	230 V AC, 50 Hz ~
Power consumption	820 W (1/8 power)
Power output (RMS)
4 ohm 4 x 1400 W
8 ohm 4 x 800 W
4 ohm bridged 2 x 3200 W
8 ohm bridged 2 x 2800 W
Frequency response	20-20000 Hz
Signal-to-Noise ratio	>80 dB
Total harmonic distortion	<0.05 %
Damping factor	>800
Slew rate	>10 V/sec
Crosstalk	>65 dB
Input sensitivity	0.775 V/1.0 V/1.4 V/38 dB/32 dB/26 dB, switchable
Voltage gain	40.3 dB (0.775 V), 38 dB (1.0 V), 35.1 dB (1.4 V)
Input impedance	20 kohms (balanced), 10 kohms (unbalanced)
Input connectors	4 x XLR

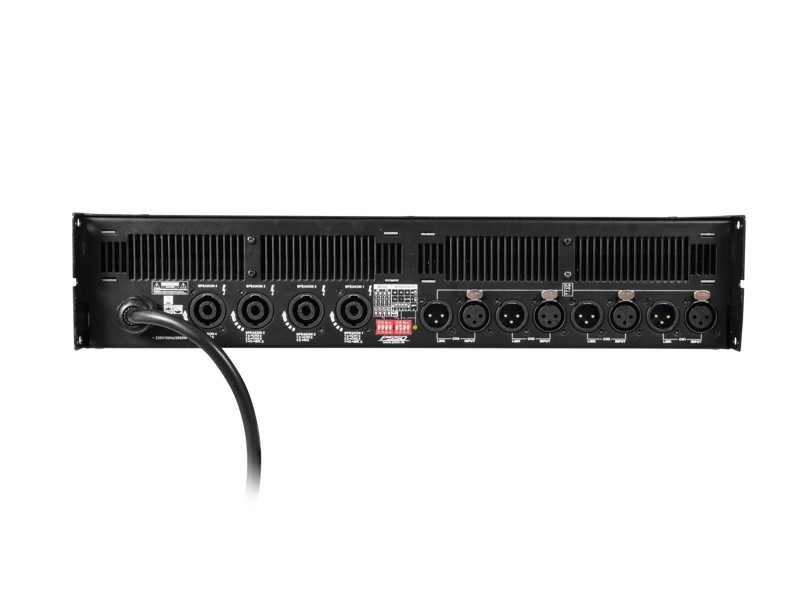

Output connectors	4 x Speaker, 4 x XLR feed-through output
Protection	Overheat, overload, short-circuit, over-current, DC voltage, softstart, VHF signals
Cooling	2 temperature-controlled fans, front-to-rear
Controls	Power switch, input attenuators, mode switch stereo/parallel/bridged, input sensitivity
LED indicators	Protect, clip, signal (per channel)
Construction	Steel chassis, aluminum front panel
Dimensions	483 x 445 x 89 mm   Rack installation with 2 U
Weight	15.5 kg
Velikost balení	59 x 56 x 18 cm
Hmotnost balení	15.3 kg
