Citronic QL700 Quad, 4-kanálový digitální zesilovač, 700W

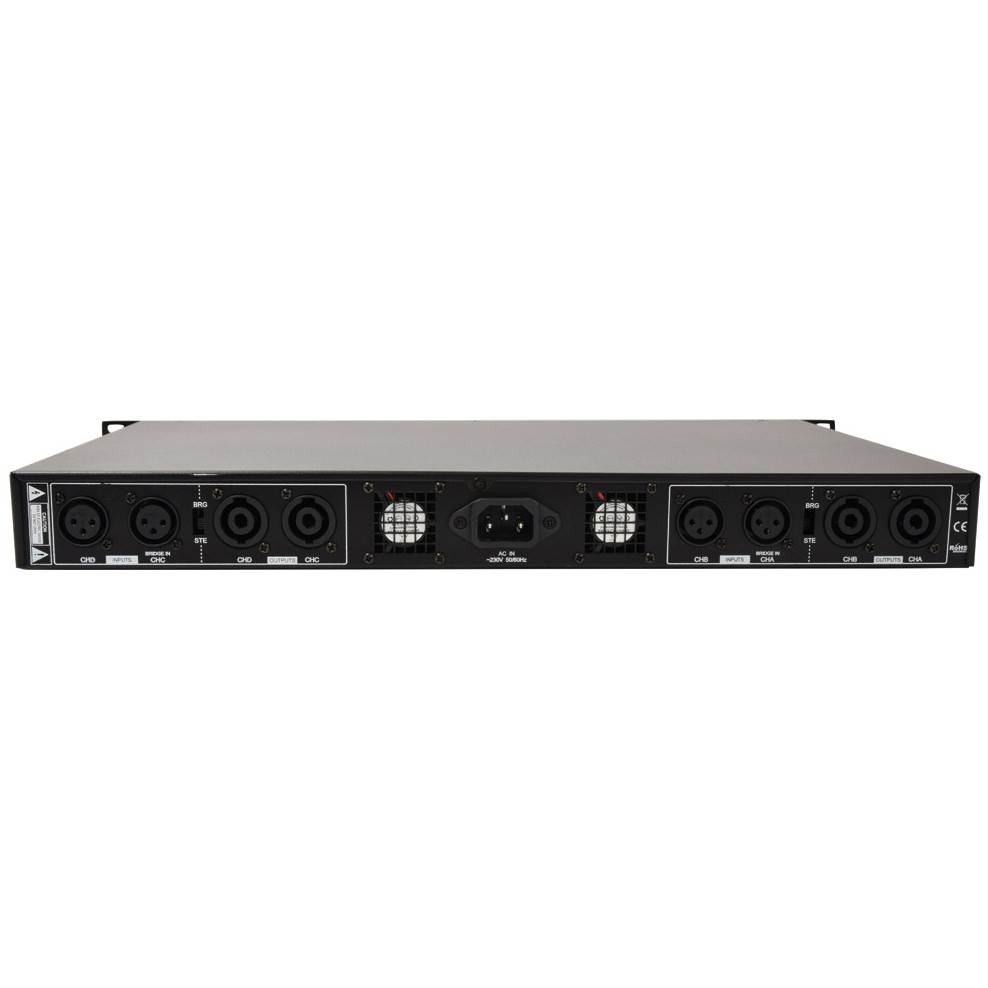

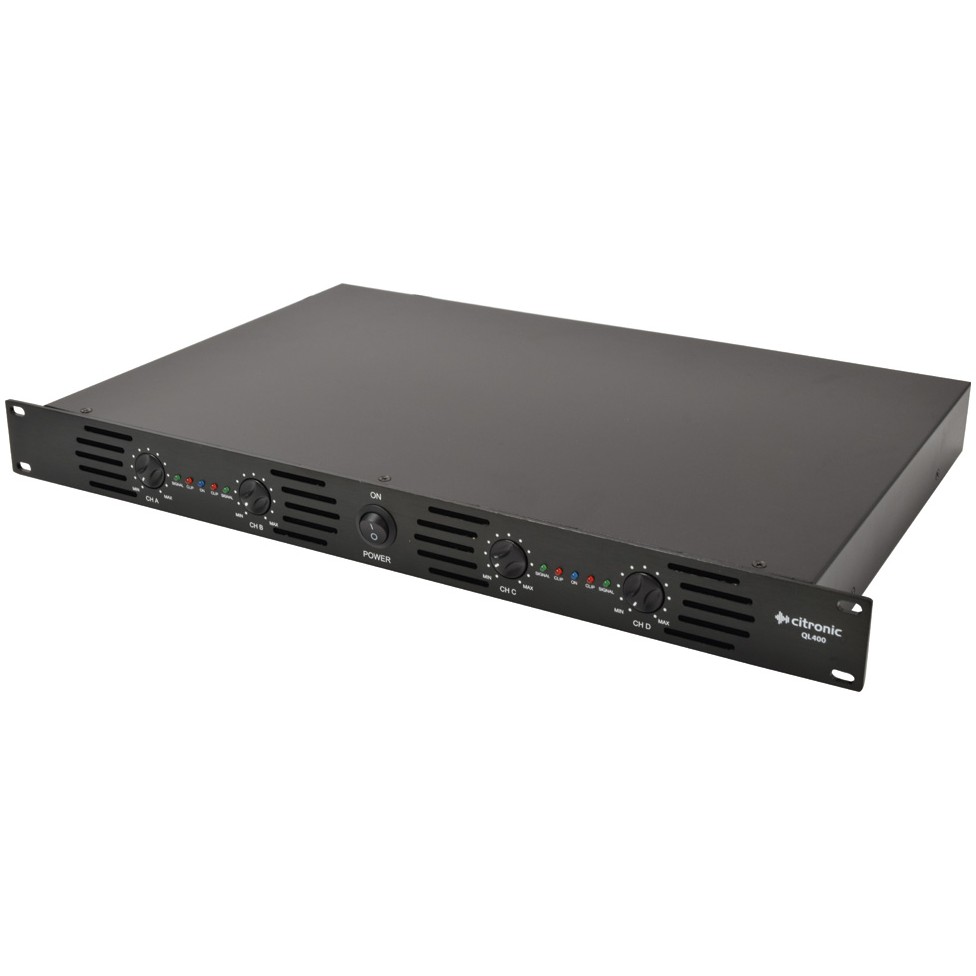

Kompaktní 4-kanálový výkonový zesilovač třídy D. Nízká hmotnost, výška 1HE, symetrické vstupy XLR, připojení reproduktorů pomocí Speakon konektorů. Zabudované ochranné obvody, volba několika provozních režimů vč. možnosti zapojení do můstku. Výkon 4x 175W RMS (4 Ohm) / 4x 100W RMS (8 Ohm) / 2x 350W RMS (8 Ohm/můstek). // Originální popis produktu (EN): Super compact and lightweight 4-channel power amplifiers in a 1U rack-mountable housing. Fully digital architecture provides high power output and efficiency with inbuilt protection circuitry. Configured as 2 pairs of channels, the amplifier can be operated as quad output, 2.1 system or stereo output by selecting bridge mode. Signal inputs are balanced XLR connectors and speaker outputs are provided on 4mm binding posts. Minimal weight and rack height make these amplifiers a viable option for portable rigs as well as convenient and unobtrusive for installations. Energy efficient class D architecture. Selectable bridge mode for 2 pairs of channels. Fan cooling and internal protection circuitry.

Technické parametry

Power supply	230V AC, 50 Hz (IEC)
Fuse	T10AL
Output power	4x 175W RMS (4 Ohm)
Output power	4x 100W RMS (8 Ohm)
Output power	2x 350W RMS (8 Ohm / bridged)
Input connections	4x balanced XLR
Output connections	4x SPK connectors
Frequency response	20 Hz – 20 kHz (0.5 dB)
THD +N	<0.05%
Damping factor	300
S/N ratio	line 100 dB (A weighted)
Slew rate	20V/us
Input impedance	10k Ohms unbalanced, 20k Ohms balanced
Output circuit architecture	Class D
Protection	Temperature, short circuit, DC, overload

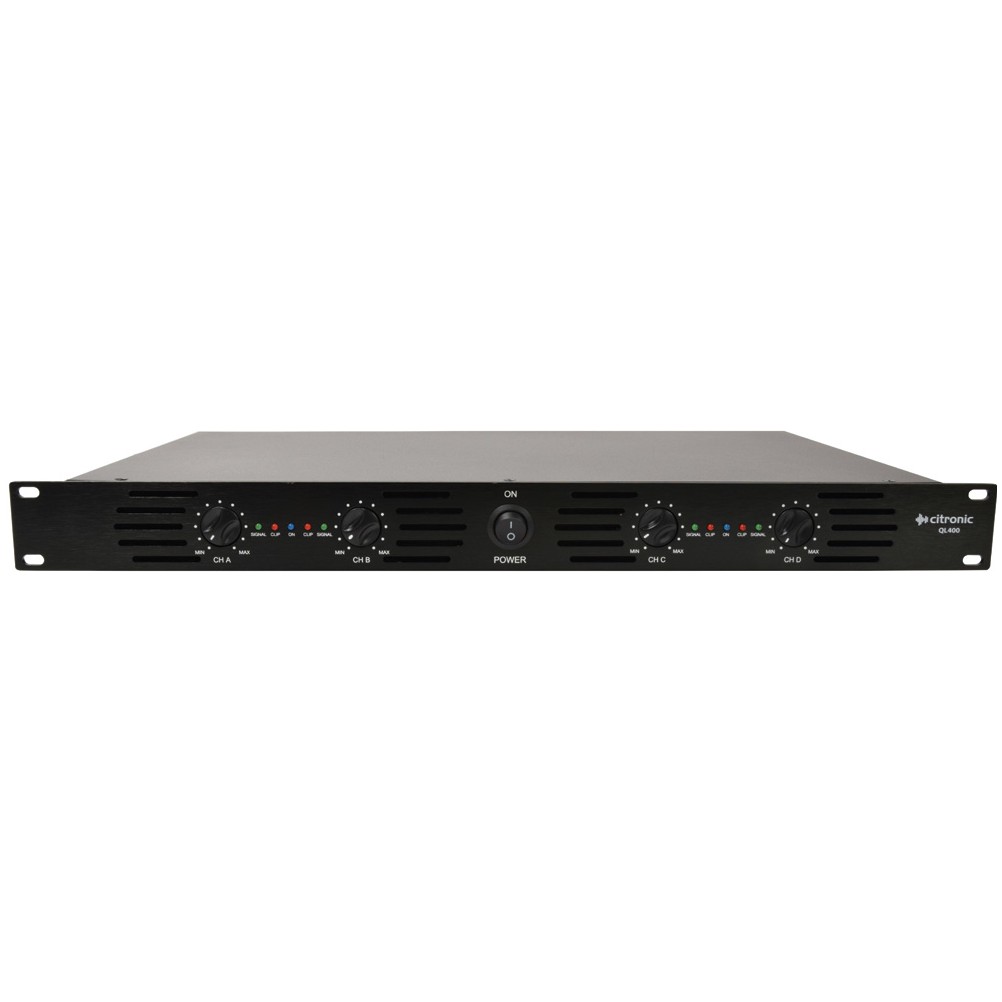

Indicators	Signal & clip
Controls	L+R level, power, mode (bridge/stereo)
Dimensions	482 x 230 x 44 mm
Weight	4,5 kg
Velikost balení	51.5 x 35.5 x 8 cm
Hmotnost balení	5 kg
