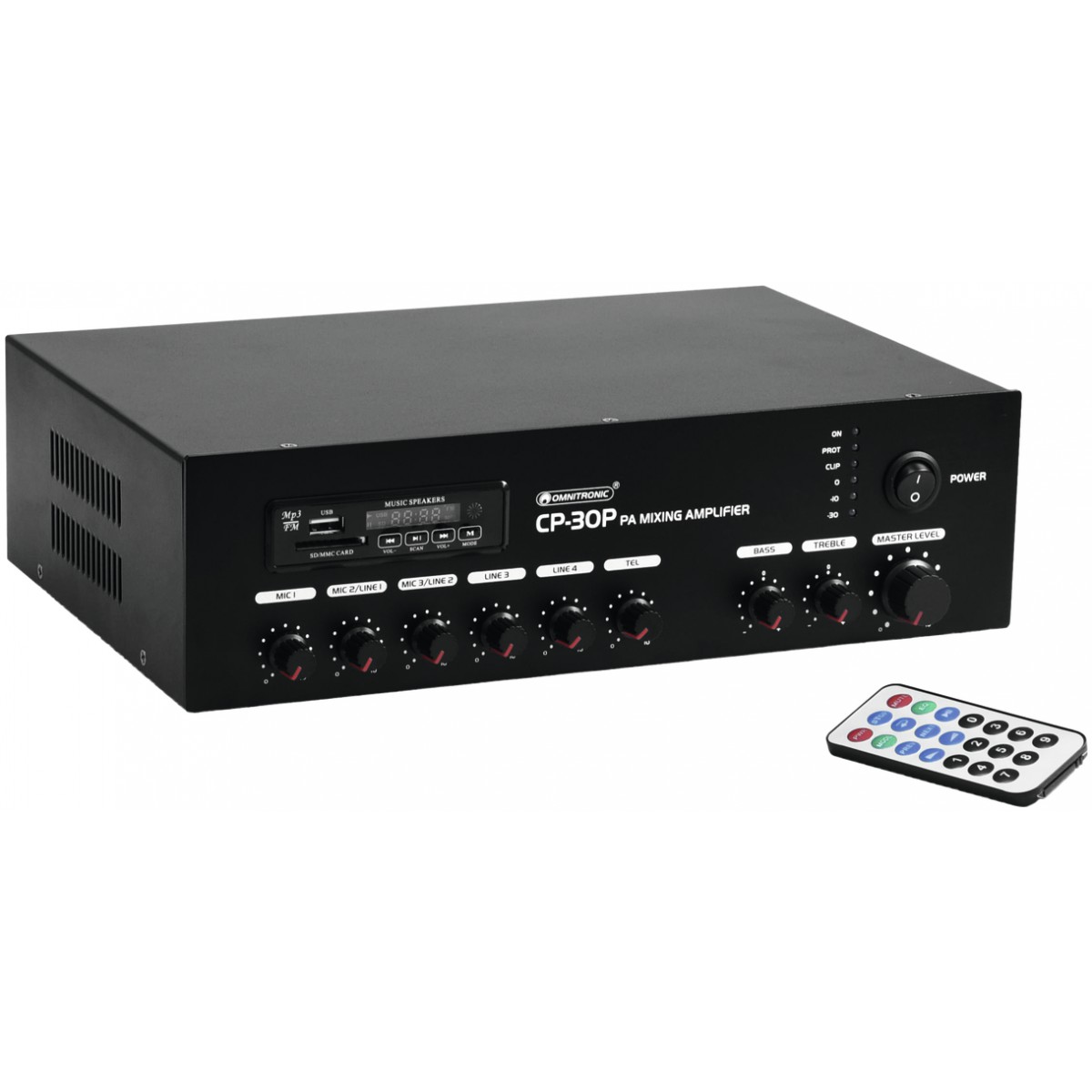

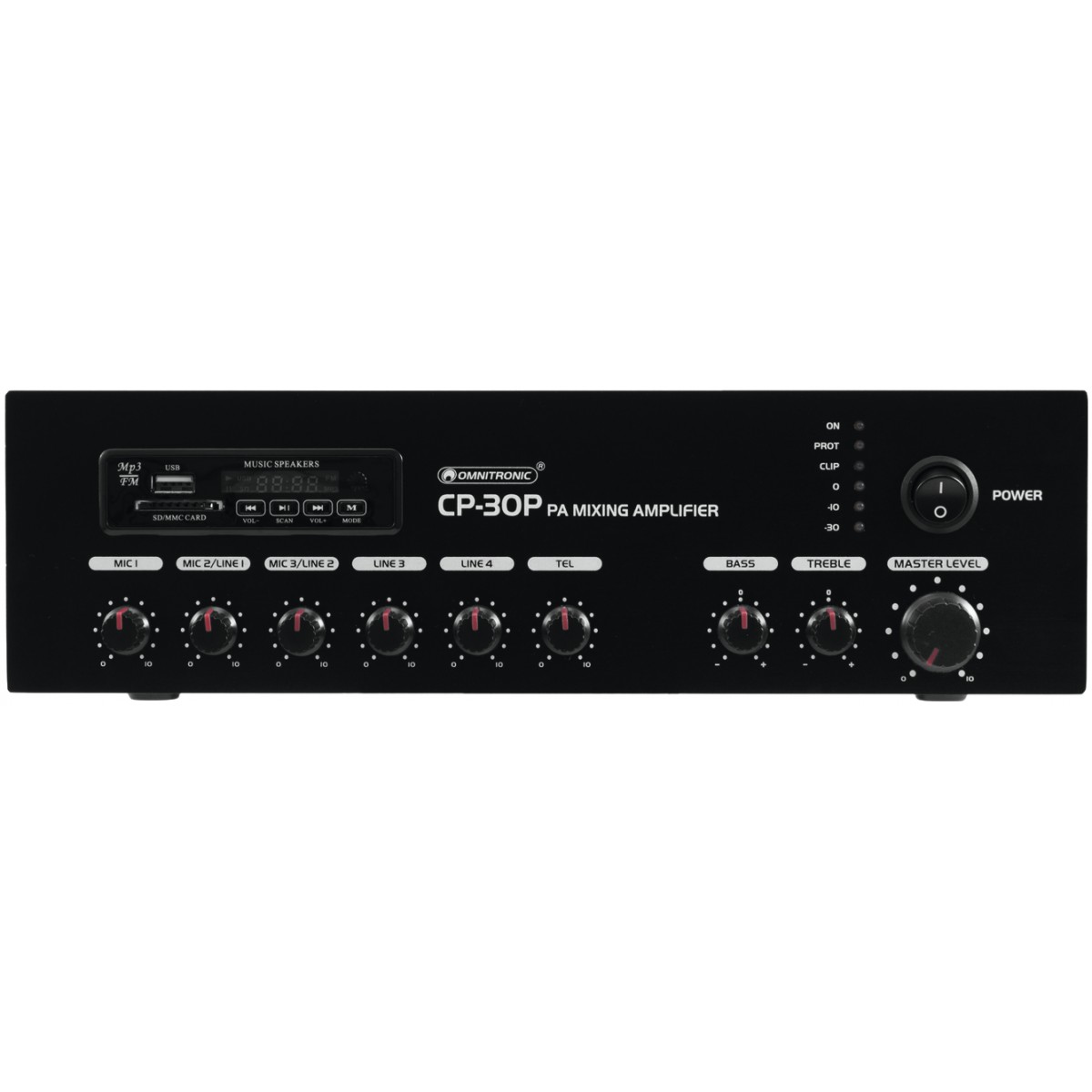

Omnitronic CP-30P PA, 100V mixážní zesilovač, 30W, BT/MP3
ukončené zboží - nelze objednat
doprava zdarma
skladem
Compact PA mono mixing amplifier 1 x 30 W (CP-30P), 1 x 60 W (CP-60P), 1 x 120 W (CP-120P). Built-in audio player with Bluetooth receiver and IR remote control. Stream music wirelessly from your mobile devices (e.g. smartphone, tablet) via Bluetooth. SD card slot and USB input. FM tuner with auto scan. Mic 1 (XLR) with phantom power and priority circuit. Mic 2 and 3 (jack) switchable mic/line. 2 aux inputs (RCA) with separate level controls. 1 telephone input with priority and MOH circuit (Music on Hold) for telephone systems with audio output. 1 line output (RCA). PA outputs for 70 V or 100 V PA speakers. PA outputs for low-impedance speakers (4-16 ohms). Treble and bass and master controls for the output signal. 4-fold LED level display. Protection circuits with LED indication: overload, short circuit, clip limiter, overheat. Fan-cooled. Mains operation and 24V emergency power operation. Compact desktop console.
Technické parametry
Technické parametry
| Power supply | 230 V AC, 50 Hz or 24 V DC emergency power battery |
| Power consumption | 60 W |
| Output power | 30 W RMS |
| Outputs | |
| Speakers | 70/100 V or 4-16 ohms (screw connectors) |
| Line | 0.775 V (RCA) |
| Inputs | |
| Mic 1 | 5-8 mV/600 ohms (XLR) |
| Mic 2, 3 | 5-8 mV/600 ohms (6.3 mm jack, unbal.) |
| Line 1, 2 | 150-470 mV, 10 ohms (RCA) |
| Tel., MOH | screw connectors |
| Frequency range | 60-15000 Hz |
| S/N ratio | >85 dB (line), >75 dB (mic) |
| THD | <0.5 % |
| Audio player | USB, SD(HC), FM tuner, Bluetooth |
| Dimensions | 320 x 238 x 93 mm |
| Weight | 2.6 kg |
| Hmotnost balení | 4.5 kg |
