Adastra Compact CS60, 100V Line Slave zesilovač, 60W RMS
ukončené zboží - nelze objednat
skladem

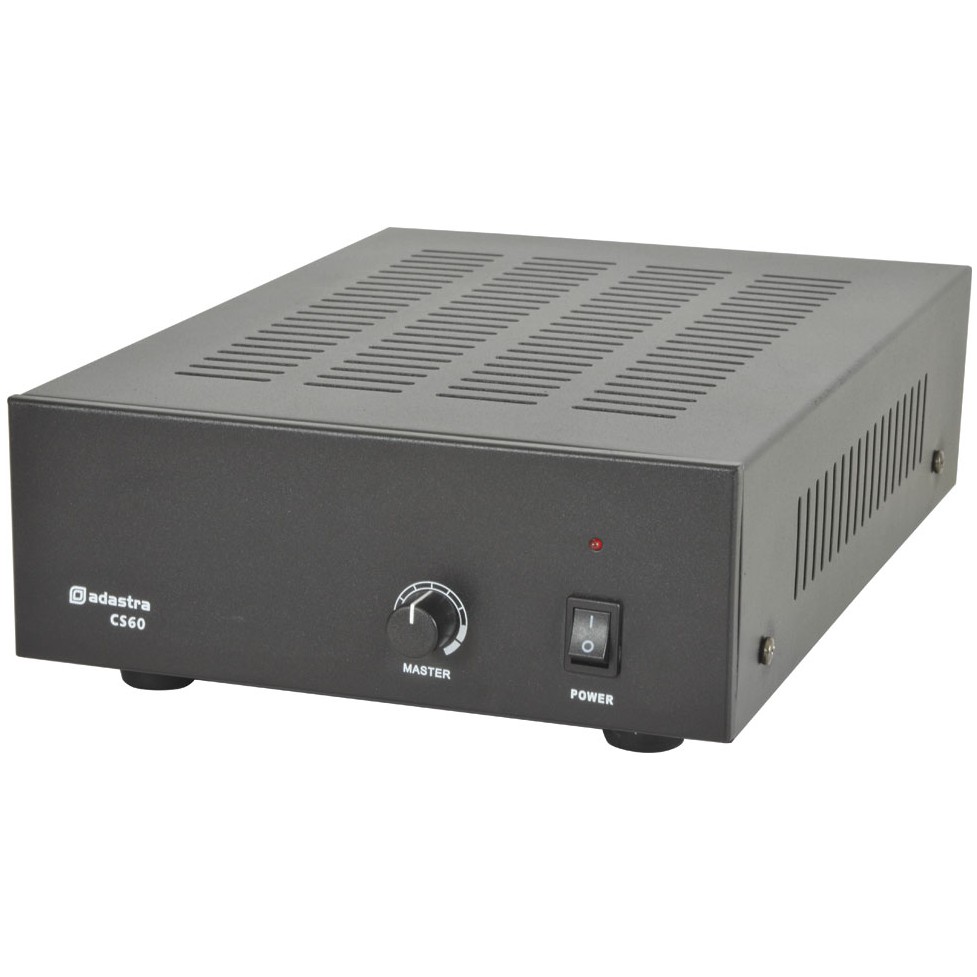

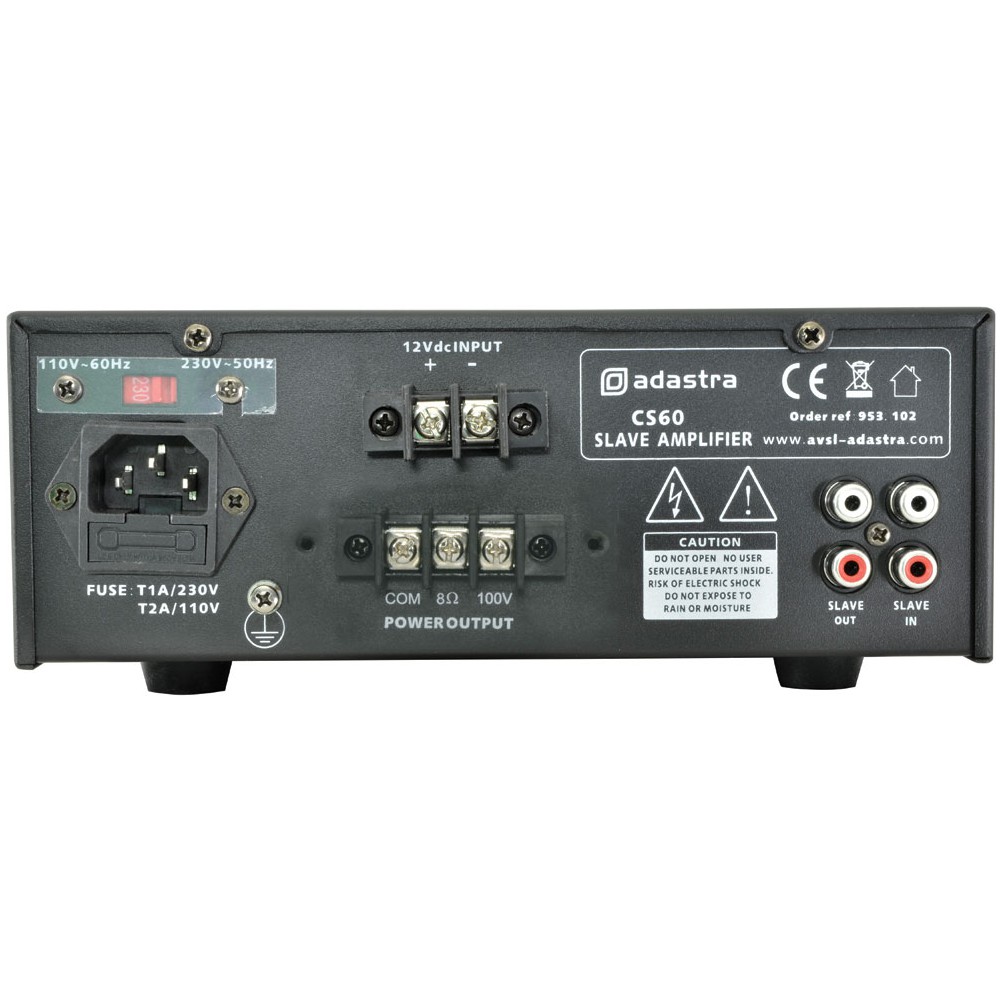

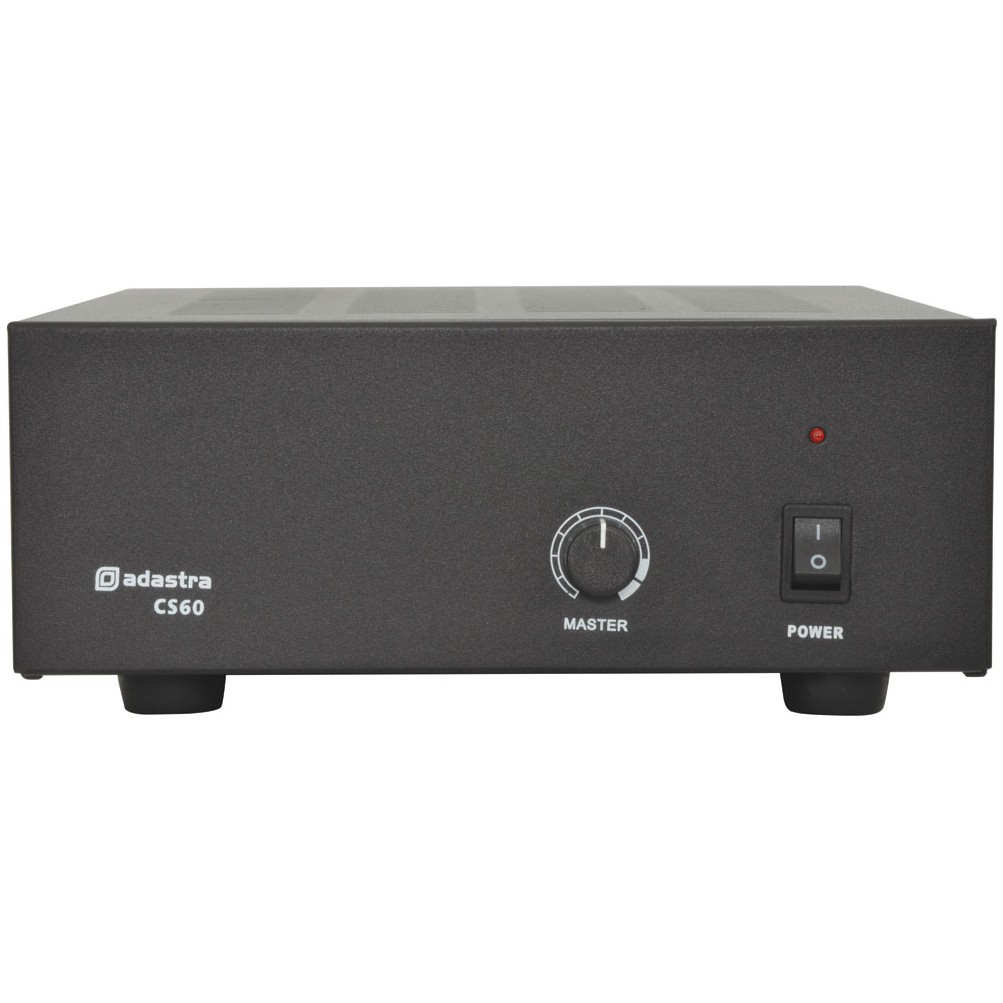

Compact 100V Line Slave Amplifier. A 100V line slave amplifier in a half width 2U housing. Features RCA line in and out with a master volume control. Mono output to either 100V line or 8 ohms speaker load is connected via screw terminals on the rear panel. Connect to a mixer amplifier to expand small to medium PA installations. 100V line or 8 ohms operation. RCA phono input and output. Compact solution for expanding PA installations. Master volume control.
Technické parametry
Technické parametry
| Power supply | 110/230V AC, 50/60 Hz (IEC) |
| DC power | 12V DC option (screw terminals) |
| Power | output 60W RMS |
| Input | Line in (RCA) |
| Output | signal 2x RCA |
| Outputs | speaker 100V / 8 Ohm / COM terminals |
| Controls | Master volume |
| THD | <1.0% |
| Frequency response | line 93 Hz - 16.3 kHz |
| Max. input level | line 7.2 dBV |
| Signal to noise ratio | 90 dB |
| Max. attenuation | line 90 dB |
| Dimensions | 329 x 210 x 84 mm |
| Weight | 4.72 kg |
| Velikost balení | 39.5 x 31.5 x 13 cm |
| Hmotnost balení | 4.7 kg |
