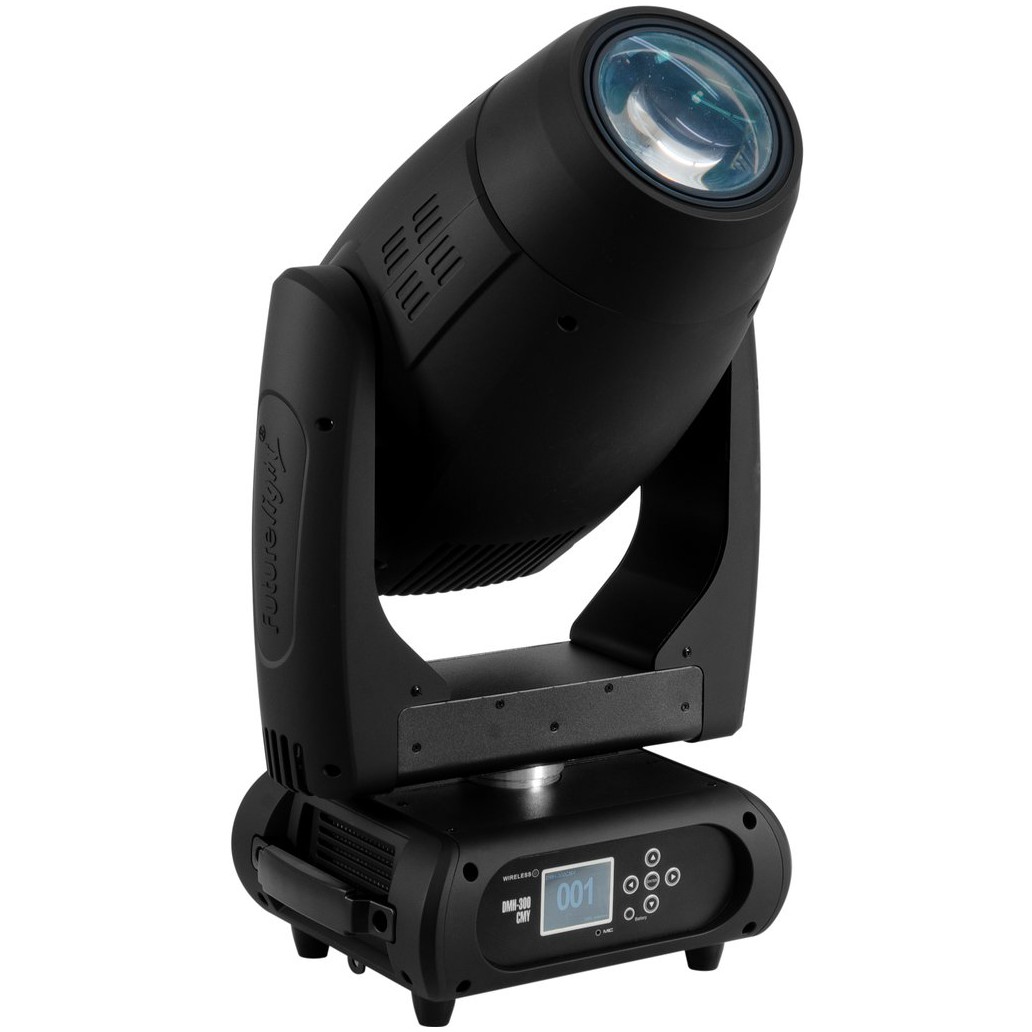

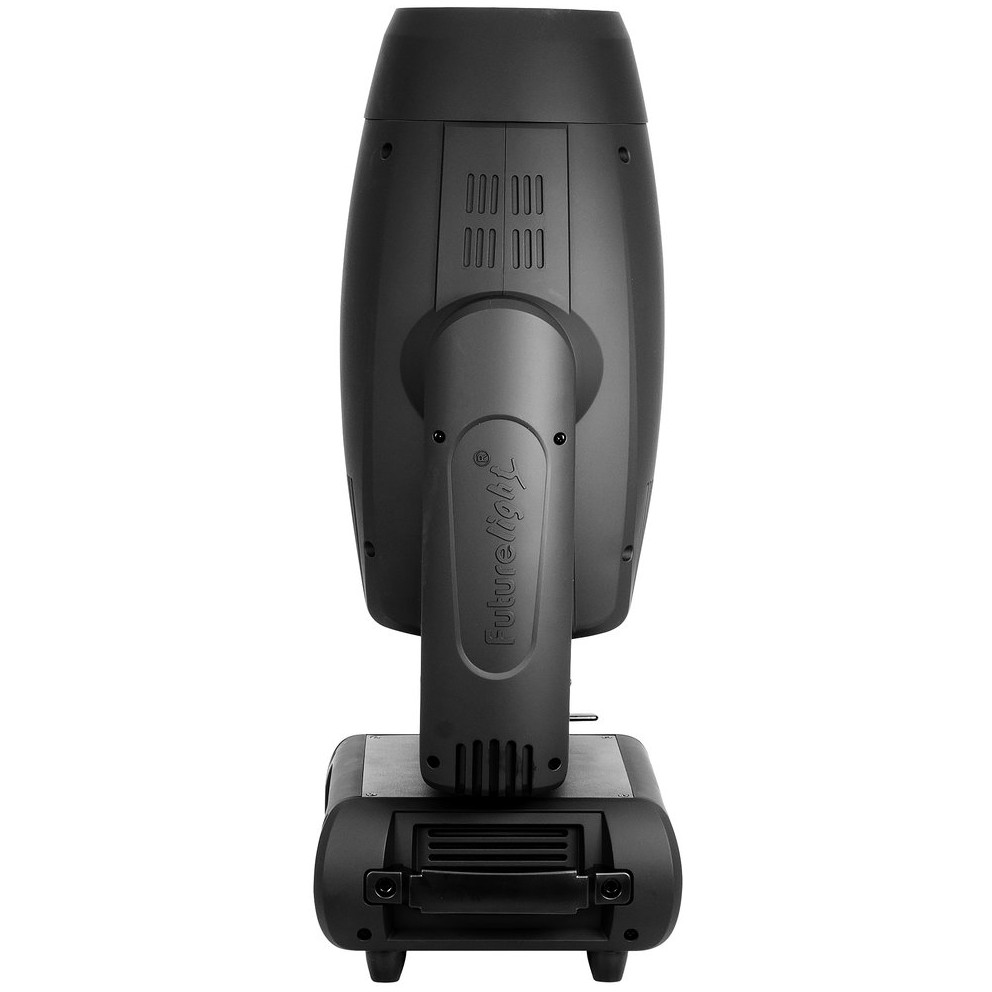

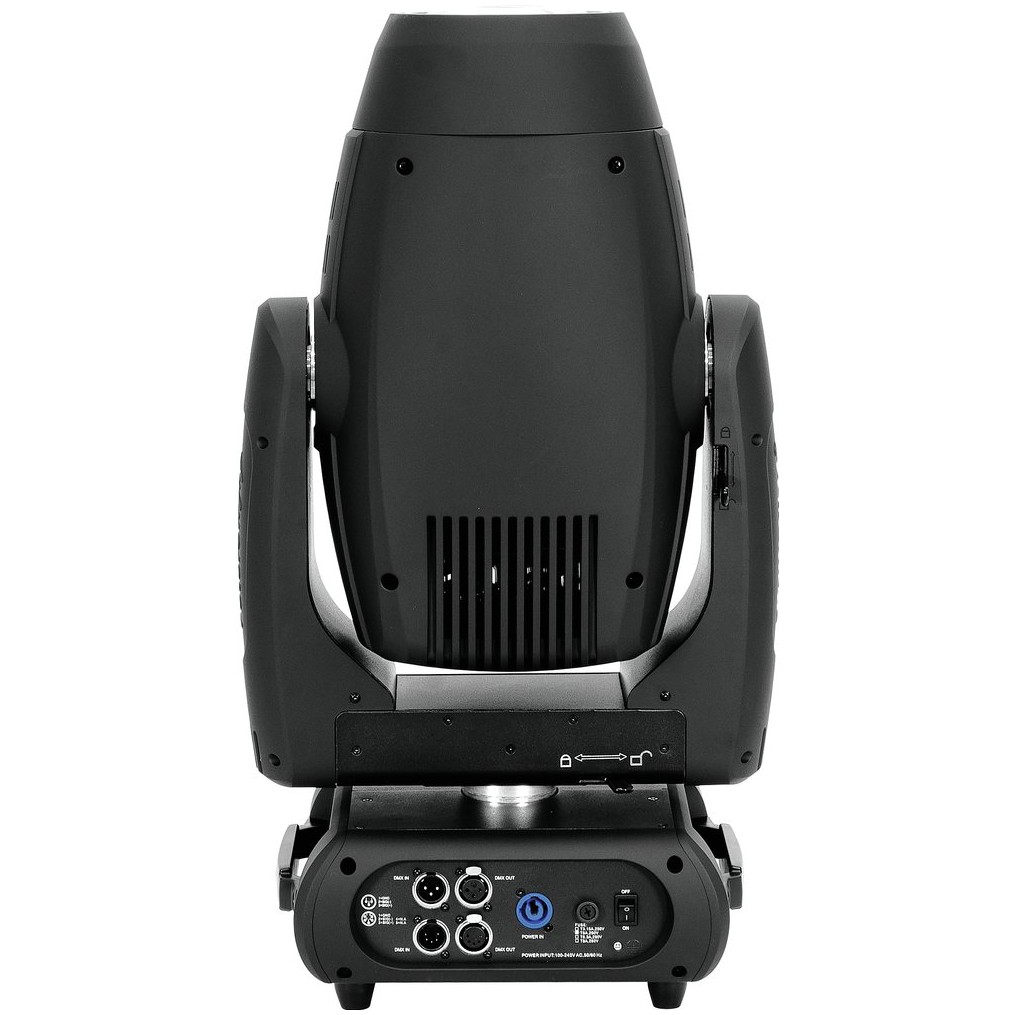

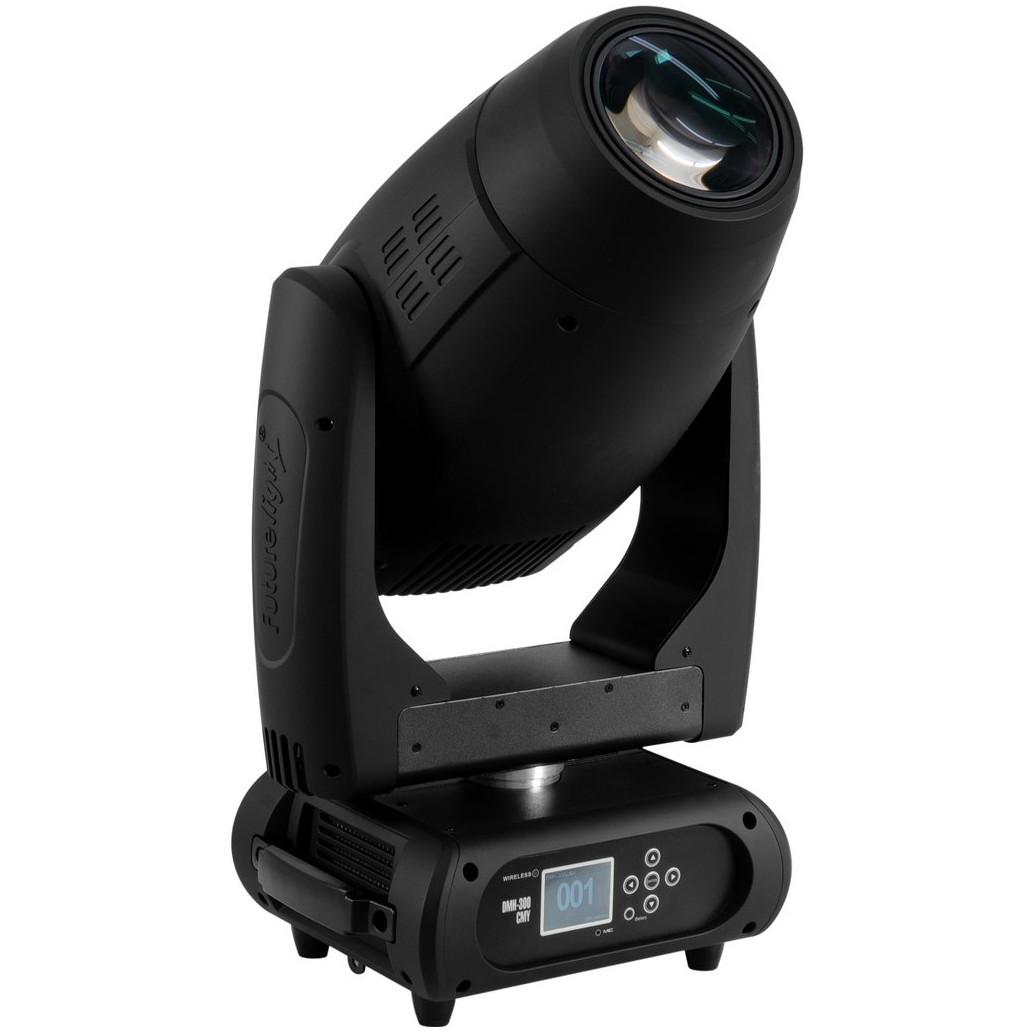

Futurelight DMH-300 Beam/Wash CMY Moving Head 270W

Výkonná otočná hlavice osazená jasnou bílou 270W COB LED. CMY modul pro širokou škálu barev, barevné kolo s CTO filtrem, Gobo kolo se statickými obrazci a Gobo kolo s rotačními obrazci. Prisma, Iris, Frost filtr, motorický Zoom, Strobo efekt, stmívání a řada dalších funkcí. // Originální popis produktu (EN): Powerful LED moving head with CMY color mixing. The DMH-300 is Futurelight's newest and largest LED spotlight to date. In the heart, it carries a particularly bright 270 watts LED. The very special: Color mixing is done via a CMY module. The LED used is cold white. You bring colors into play with the CMY module: This consists of three large color wheels, each of which steplessly displays one of the three primary colors cyan (turquoise), magenta (pink) and yellow. Each of these three colors can be added to the color mixture in any intensity. In this way you create completely different colors than with RGB-based color mixing. At the same time, you are not bound to the given, limited colours of a conventional color wheel. Intense shades such as blue or dark red can be produced in particular. In addition, the device offers a fourth stepless color wheel with a CTO filter, i.e. a color correction from cold white to warm white. A conventional color wheel, which can be used, for example, to produce two half-colors, is also on board. The extensive equipment of the moving head also includes 2 gobo wheels with easily exchangeable gobos, prism, iris, frost filter and a huge zoom range. With the DMH-300, you get an extraordinary moving head that is particularly suitable for show and theatre stages in professional environments. Thanks to its zoom, you can use it as a beam spotlight just as well as for large-screen projections. And thanks to its LED, the DMH-300 also dims much cleaner than the shutter dimmings of other devices of this size.

Technické parametry

Power supply	100-240 V AC, 50/60 Hz
DMX channels	19/21/28/29
DMX connection	5-pin and 3-pin XLR
Sound-control	via built-in microphone
LED type	270 W COB, white, 8000 K
LED number	1
Beam angle	8-44
Color-system	CMY color-mixture
Color-wheel	8 dichroic filters plus open
Static gobo-wheel	7 gobos and open
Rotating gobo-wheel	7 gobos and open
Outside diameter of the gobos	27 mm
Image diameter of the gobos	22 mm
Maximum PAN-movement 630	in 4 s
Maximum TILT-movement 265	in 2.8 s
Dimensions (L x W x H)	445 x 369 x 534 mm
Weight	25,10 kg
Lamp type	LED lamp
Cooling fan	yes, temperature controlled
IP classification	IP20
Power consumption	340 W
Beam angle	8 - 44
Width	44,5 cm
Depth	36,9 cm
Height	53,4 cm
Max. PAN movement	Exact positioning (16 bit resolution) 540 Positioning switchable to 630 Pan tilt feedback
Max. TILT movement	Exact positioning (16 bit resolution) 265 Pan tilt feedback
DMX channels	19; 21; 28; 29
Ecodesign regulation	Yes
Special product	Not designed for household room illumination
Purpose	Show effect lighting
Velikost balení	83 x 47 x 35 cm
Hmotnost balení	28.5 kg

Výrobce

Steinigke Showtechnic GmbH Andreas-Bauer-Str. 5, Waldbüttelbrunn D-97297, Německo tel.: +499314061600 mail: info@steinigke.deweb: www.steinigke.de
